Description
Rubber Specifications
Typical values
| NAT | |
|---|---|
| Tensile strength (MPa) min ISO37 | 12.0 |
| Elongation min ISO37 | 530% |
| Hardness (shore A) ISO868 | 60+/-5 |
LAGGING SPECIFICATIONS – DIAMOND RUBBER LAGGING
COLD BONDED – NAT
DIMENSIONS DIMPLE TILES| PRODUCT | CODE | WIDTH | THICKNESS | LENGTH | WEIGHT/lm |
|---|---|---|---|---|---|
| Rubber Lagging 8mm | ELA-RL-DIA-W-08 | 249mm-251mm | 8mm-9mm | 3.25m | 2.45kg |
| Rubber Lagging 10mm | ELA-RL-DIA-W-10 | 249mm-251mm | 10mm-11mm | 3.25m | 2.78kg |
| Rubber Lagging 12mm | ELA-RL-DIA-W-12 | 249mm-251mm | 12mm-13mm | 3.25m | 3.93kg |
| Rubber Lagging 15mm | ELA-RL-DIA-W-15 | 249mm-251mm | 15mm-16mm | 3.25m | 4.30kg |
| Rubber Lagging 20mm | ELA-RL-DIA-W-20 | 249mm-251mm | 19mm-20mm | 3.25m | 5.70kg |

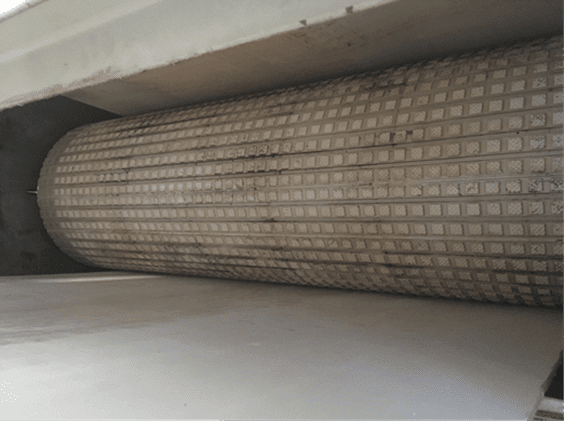

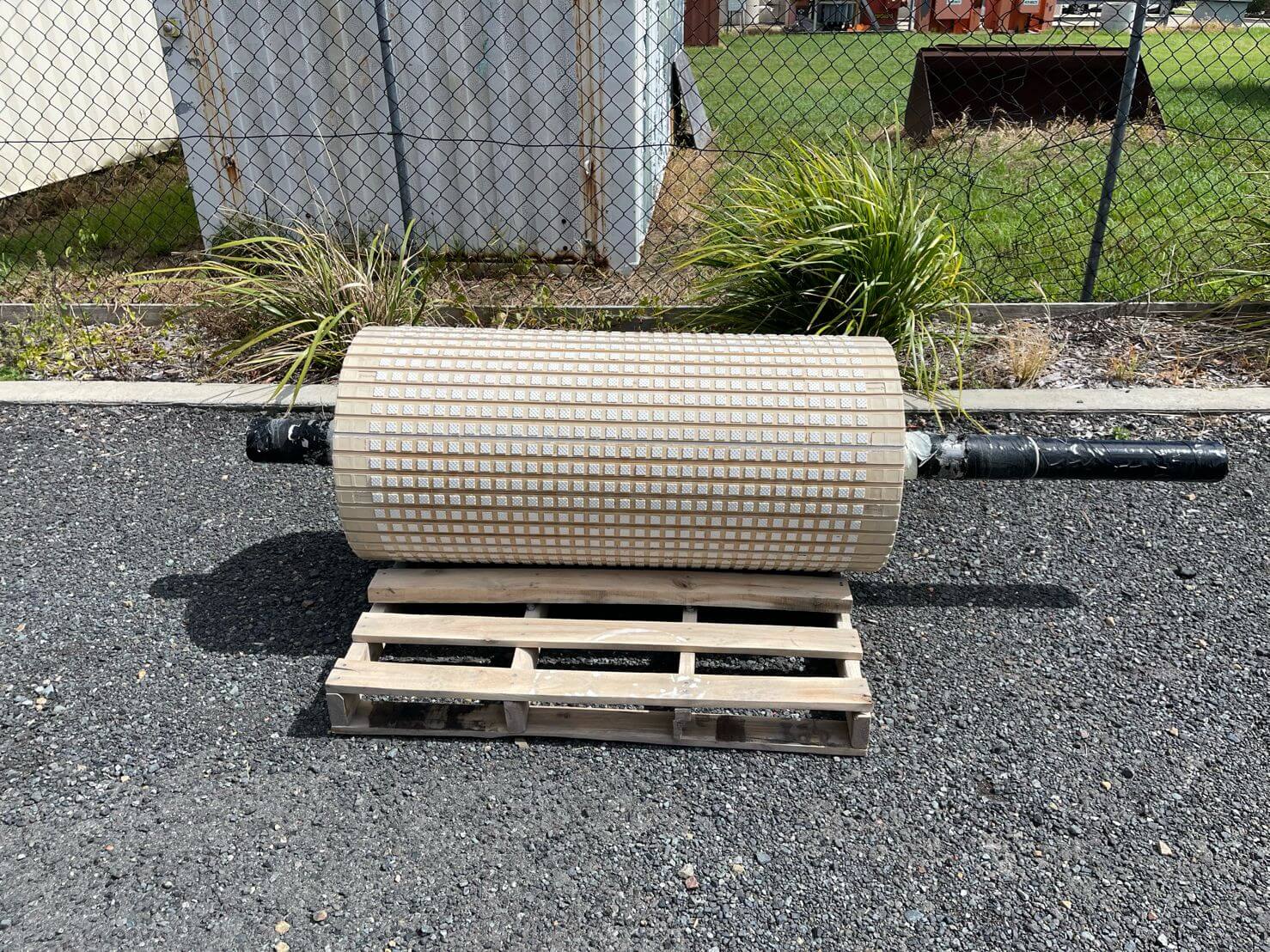

LAGGING SPECIFICATIONS – MEDIUM SINGLE ROW CERAMIC 38% LAGGING
COLD BONDED – NAT
IMENSIONS DIMPLE TILES| PRODUCT | CODE | WIDTH | THICKNESS | LENGTH | WEIGHT/lm |
|---|---|---|---|---|---|
| Ceramic Lagging 12mm | ELA-SRC38-W-12K-SQ | 250mm-252mm | 12mm-13mm | Up to 3.25m | 4.19kg |
| Ceramic Lagging 15mm | ELA-SRC38-W-15K-SQ | 250mm-252mm | 15mm-16mm | Up to 3.25m | 4.84kg |
| Ceramic Lagging 20mm | ELA-SRC38-W-20K-SQ | 250mm-252mm | 20mm-21mm | Up to 3.25m | 5.23kg |

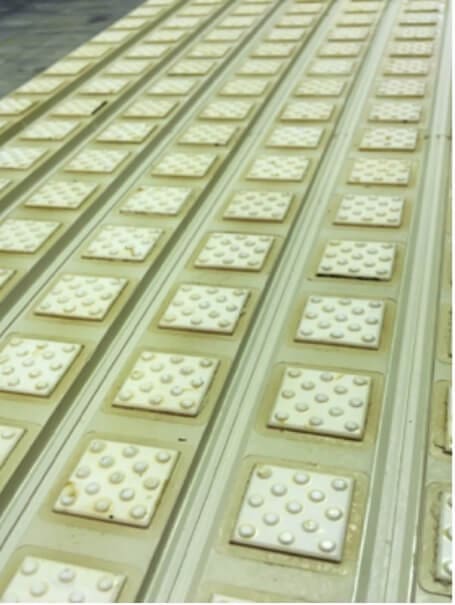

DIMENSIONS PLAIN TILE
| PRODUCT | CODE | WIDTH | THICKNESS | LENGTH | WEIGHT/lm |
|---|---|---|---|---|---|
| Ceramic Lagging 12mm | ELA-SRC38-W-12P-SQ | 250mm-252mm | 12mm-13mm | Up to 3.25m | 4.39kg |
| Ceramic Lagging 15mm | ELA-SRC38-W-15P-SQ | 250mm-252mm | 15mm-16mm | Up to 3.25m | 5.04kg |
| Ceramic Lagging 20mm | ELA-SRC38-W-20P-SQ | 250mm-252mm | 20mm-21mm | Up to 3.25m | 5.43kg |
Storage recommendations:
- Stock usage based on a first-in first-out method (FIFO).
- The storage room for lagging must be cool, dry and dust-free.
- Avoid storage places near sources of ozone generating equipment.
- Do not store outside.
- Avoid storage in direct sunlight and strong artificial light as UV light can damage the products and may lead to a premature ageing.
- Under no circumstances should fuels, lubricants, acids, disinfectants, solvents or other chemicals be stored in the same storage area.
- Keep the storage place clean. Protect the material from dust, water etc. with suitable coverings.
- Allow 24 hours before use when lagging is removed from cold storage.
Shelf life:
COLD BONDING LAGGING AND WEAR PANELS
- Stored <25°C 3 years shelf life
- Light buffing of bonding surfaces is recommended if over 4 months from production date
HOT VULCANISED LAGGING AND WEAR PANELS
- <7°C and away from UV and ozone generating equipment 12 months. Products stored for longer than 6 months will need to be re-tested for adhesion before being used, and the recommended shelf life is 12 months.
ADHESIVES AND PRIMERS
- Store in flammable goods cabinet
- Stored <25°C
- Shelf life:
- Primers 2 years
- Cold bonding adhesive 2 years
- Hot vulcanising adhesive 12 months
- Direct bond adhesive 2 years
Products stored under the above conditions for longer periods of time than recommended need to be re-tested for adhesion before being used. If any doubts on storage recommendations, contact Elastotec.
